Cranked Wheel Guide

The WYSB Cranked HGV wheel guides provide a solid, steel kerb to allow the safe reversing into loading bays by wagons and delivery trucks. Also suitable for protecting racking, equipment and machines from potential damage caused by forklift trucks and moving vehicles.

Available in 1800mm length and 139mm or 168mm diameter.

The WYSB cranked wheel guide is suitable for a wide range of warehouse or factory environments.

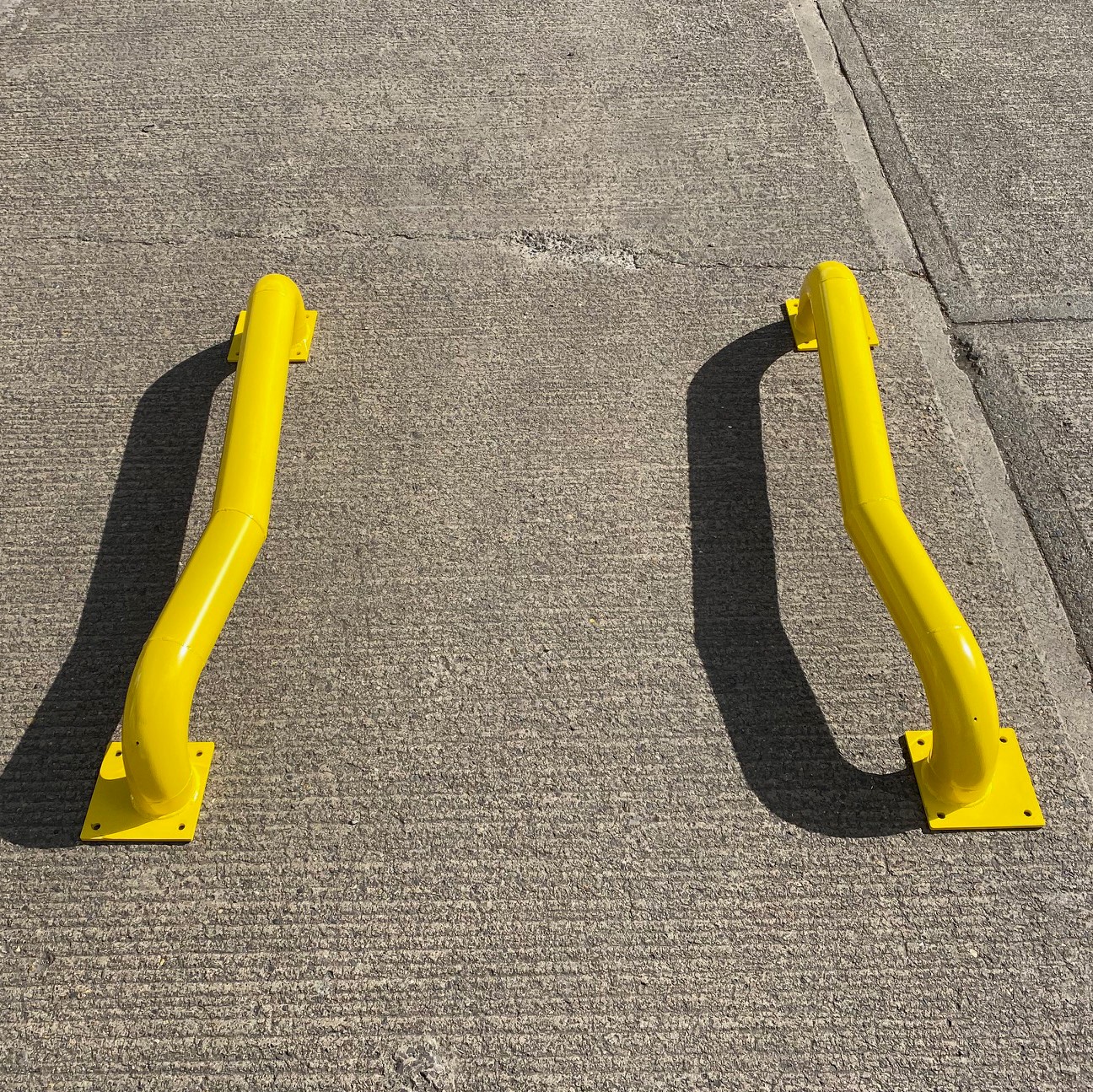

Manufactured from galvanised mild steel, then powder coated yellow providing a visual and physical aid for drivers.

Sold in pairs. Each pair will include 1 x left hand crank and 1 x right hand crank.

Available bolt down only.

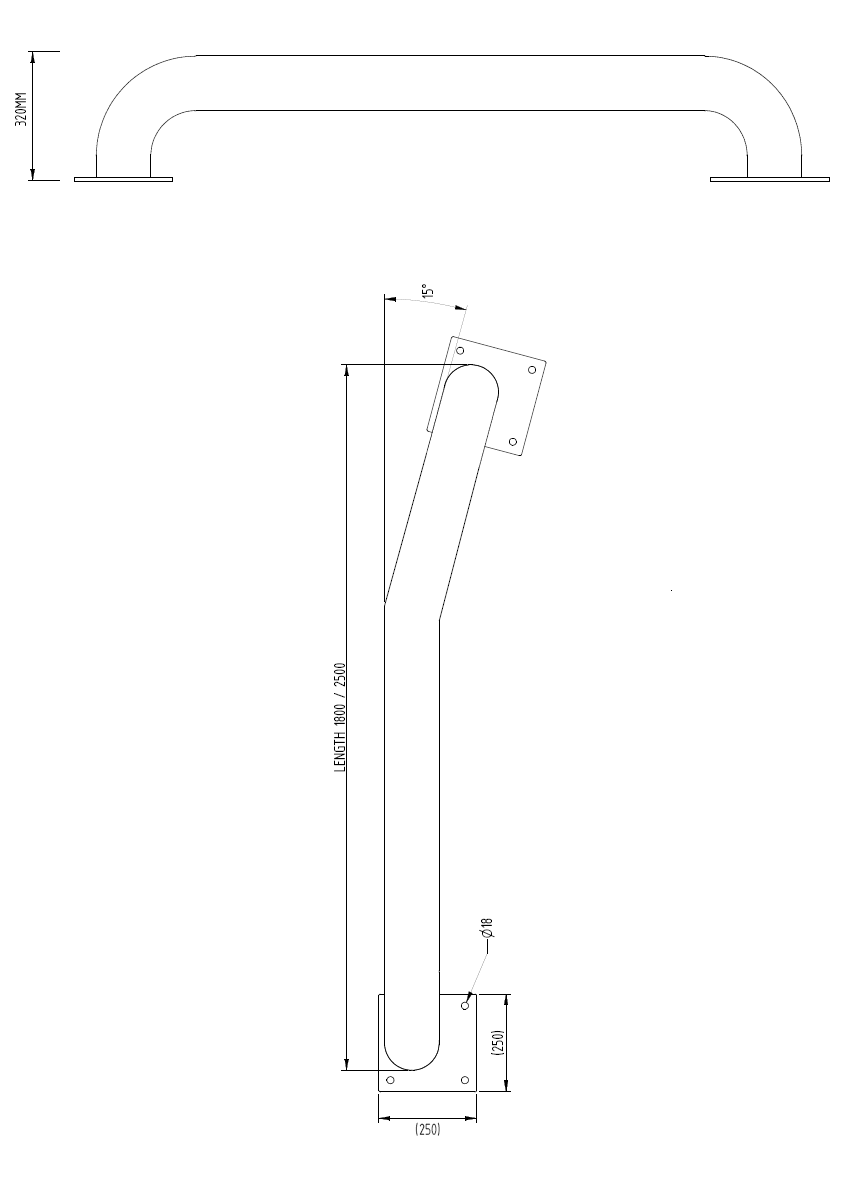

Product details:

Available bolt down only
320mm height
Square flange plate – 250mm sq x 10mm
5mm wall thickness
8 x 18mm bolts required per wheel guide
15° crank

Size	139mm x 1800mm, 168mm x 1800mm
Type	Galvanised, Galvanised & Yellow
